CL700S-240-C – Driver

Constant Current Mains Driver

  • Self resetting thermal trip
  • Double insulated (Class II)
  • Up to 88% efficient
  • Surge protection up to 4KV
  • SELV isolation
  • Screwless cable clamps for fast assembly (remote style)
TypeConstant Current
Max Power Output33W

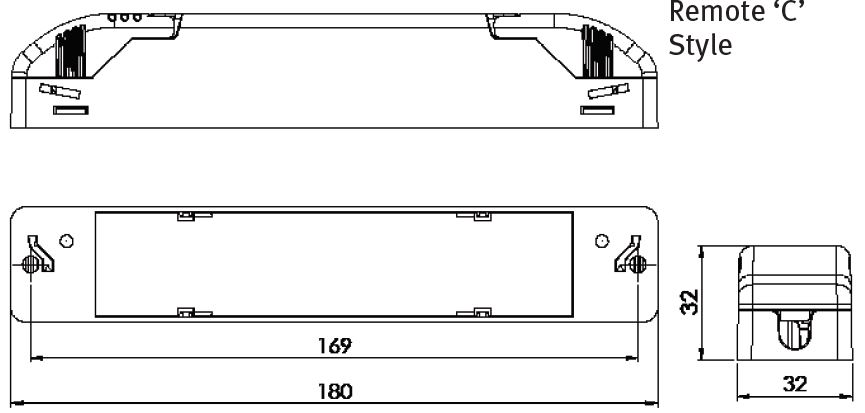

Size180 x 32 x 32 mm
Power Factor0.98
Input Voltage198-265VAC 50Hz
Current Output (switchable)350/700mA
Voltage Output9V - 48V
Ambient Temperatures (ta)-20°C to +50°C
Max Temperature (tc)85°C
