D-LIGHTZ Deep Tilt LED Downlight

$ 0.00

The D-LIGHTZ Deep Tilt LED Downlight is an architectural downlight with minimal trim, a 15 degree tilt for general lighting applications and a Prismatic diffuser, giving softer light beams. The D-LIGHTZ Deep Tilts also offer options of Ultra Low Glare and Opaque diffused lighting. All diffusers have Sunset Dimming options.

Switch Lighting Pure Colour downlights render rich natural colours that enhance skin, surfaces and textiles to provide excellent visual clarity in every environment. Available in the Professional Series with 90+CRI, Art Series with 97 CRI, or with sunset dimming for excellent mood lighting.

NZ Designed & Manufactured Logo, IC-F Abutted & Covered Logo, Pure Colour High CRI Downlights Logo

Clear
SKU: N/A

Categories: , ,

Description

Drawing of insulation coverable driver and luminaire

Available in a wide range of lumen outputs for perfect lighting in a wide range of applications

SCB & HCB = 0 can be used in any room, in any position and can abut normally flammable building elements.

SLDL121T
Professional Series with fixed CCT
SLDL121T
Art Series with fixed CCT
SLDL121T
Professional Series + Sunset Dimming
TypeGimball recessed downlightGimball recessed downlightGimball recessed downlight
Beam angle60°, 40°, 20°60°, 40°, 20°60°, 40°
Tilt angle15°15°15°
Colour temp2700K, 3000K, 4000K2700K, 3000K, 4000KFull power = 3000K
Dimmed power = 2200K
CRI / R990+ CRI/ R9>50 97 CRI/ R9~9090+ CRI/ R9>50
Trim coloursWhite, Silver, BlackWhite, Silver, BlackWhite, Silver, Black
Diffuser typePrismatic PrismaticPrismatic
IP ratingIP65 (front face)IP65 (front face)IP65 (front face)

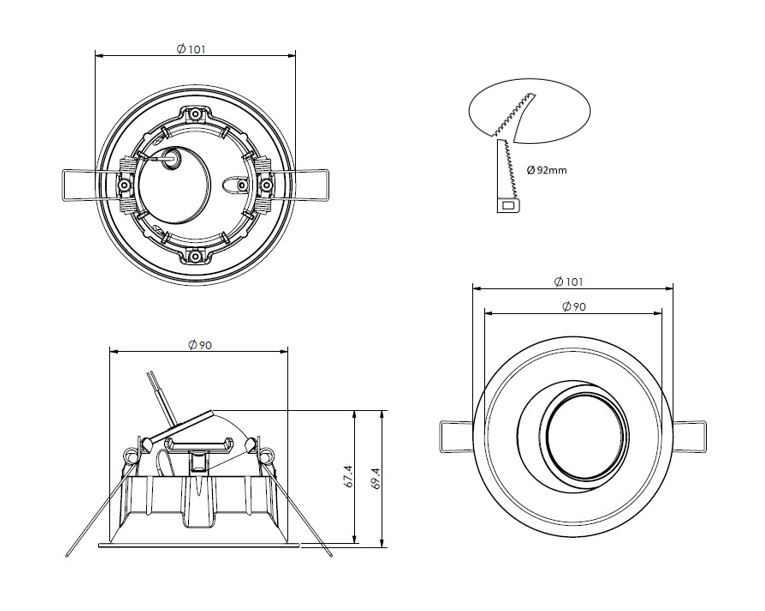

Dimensions101mm x 67mm101mm x 67mm101mm x 67mm
Min hole depth72mm72mm72mm
Cutout92mm92mm92mm
DimmingPhase cut dimming as standardPhase cut dimming as standardPhase cut dimming as standard
Driver coveredSL152D, SL222D, SL302DSL152D, SL222D, SL302DSL222D
PF0.950.950.95
Expected life (L70, TM21)Up to 60,000 hoursUp to 60,000 hoursUp to 60,000 hours
HCB & SCB (clearance to normally flammable building elements)SL152D: 0mm
SL222D: 0mm
SL302D: 20mm
SL152D: 0mm
SL222D: 0mm
SL302D: 20mm
SL152D: -
SL222D: 0mm
SL302D: -
Delivered Lumens (specifications are given for 3000K colour - other colours may differ slightly)SL152D: 550 lumen
SL222D: 800 lumen
SL302D: 1000 lumen
SL152D: 500 lumen
SL222D: 730 lumen
SL302D: 910 lumen
SL152D: -
SL222D: 630 lumen
SL302D: -
Luminaire powerSL152D: 5.5W
SL222D: 7.9W
SL302D: 11.5W
SL152D: 5.5W
SL222D: 7.9W
SL302D: 11.5W
SL152D: -
SL222D: 8W
SL302D: -
System powerSL152D: 6.8W
SL222D: 9.2W
SL302D: 13.2W
SL152D: 6.8W
SL222D: 9.2W
SL302D: 13.2W
SL152D: -
SL222D: 9.6W
SL302D: -
EfficacySL152D: 80.9 Lm/W
SL222D: 87 Lm/W
SL302D: 75.8 Lm/W
SL152D: 73.5 Lm/W
SL222D: 79.3 Lm/W
SL302D: 68.9 Lm/W
SL152D: -
SL222D: 65.6 Lm/W
SL302D: -
Insulation coverable luminareSL152D: IC-F & IC-4
SL222D: IC-F & IC-4
SL302D: NZ: CA135 AU: Do not cover
SL152D: IC-F & IC-4
SL222D: IC-F & IC-4
SL302D: NZ: CA135 AU: Do not cover
SL152D: -
SL222D: IC-F & IC-4
SL302D: -
Driver (included)SL152D - 150mA
SL222D - 220mA
SL302D - 300mA
(alternative options available
including Dali, Classic and Marine)
SL152D - 150mA
SL222D - 220mA
SL302D - 300mA
(alternative options available
including Dali, Classic and Marine)
SL222D: 220mA (alternative options available
including Dali, Classic and Marine)
ReplacesSL152D: 35W halogen with equal or better result
SL222D: 50W halogen with equal or better result
SL302D: 70W halogen with equal or better result
SL152D: 35W halogen with equal or better result
SL222D: 50W halogen with equal or better result
SL302D: 70W halogen with equal or better result
SL222D: 50W halogen with equal or better result
