D-LIGHTZ Fixed LED Downlight

$ 0.00

The D-LIGHTZ Fixed LED Downlight is the perfect downlight for general home illumination, with a Prismatic diffuser giving softer light beams. Designed to minimise glare, this product can be used in conjunction with the D-LIGHTZ TILT as these two products share the same trim profile. The D-LIGHTZ Fixed also offer an option of Ultra Low Glare diffused lighting. All diffusers have Sunset Dimming options.

Switch Lighting Pure Colour downlights render rich natural colours that enhance skin, surfaces and textiles to provide excellent visual clarity in every environment. Available in the Professional Series with 90+CRI, Art Series with 97 CRI, or with sunset dimming for excellent mood lighting.

NZ Designed and Manufactured Logo, IC-F Abutted and Covered Logo, Pure Colour High CRI Downlights Logo

Clear
SKU: N/A

Categories: , ,

Description

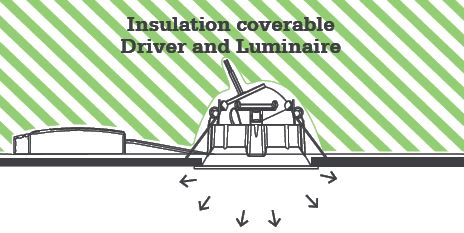

Drawing of insulation coverable driver and luminaire

INSULATION SAFE – Insulation safely wraps over D-LIGHTZ – tested and approved

NO HEAT LOSS – Stops chimney effect heat loss from room

SCB & HCB = 0 – Can be used in any room in any position

DIMMABLE DRIVER – Standard dimming

Dimming driver is compatible with most universal and trailing edge dimmers – refer to installation sheet

This product can be used to replace any halogen up to 50W with equal or better results

SL111LG
Professional Series with fixed CCT
SL111LG
Art Series with fixed CCT
SL111LG
Professional Series + Sunset Dimming
TypeRecessed downlightRecessed downlightRecessed downlight
Beam angle60°, 40°, 20°60°, 40°, 20°60°, 40°
Colour temp2700K, 3000K, 4000K2700K, 3000K, 4000KFull power = 3000K
Dimmed power = 2200K
CRI / R990+ CRI/ R9>5097 CRI/ R9~90 90+ CRI/ R9>50
Trim coloursWhite, Silver, BlackWhite, Silver, BlackWhite, Silver, Black
Diffuser typePrismaticPrismaticPrismatic
ULGUGR<19UGR<19UGR<19
IP ratingIP65 (front face)IP65 (front face)IP65 (front face)
Dimensions100mm x 48mm100mm x 48mm100mm x 48mm
Min hole depth54mm54mm54mm
Cutout83mm-92mm83mm-92mm83mm-92mm
DimmingPhase cut dimming as standardPhase cut dimming as standardPhase cut dimming as standard
Driver coveredSL152D, SL222D, SL302DSL152D, SL222D, SL302DSL222D
PF0.950.950.95
Expected lifeUp to 60,000 hoursUp to 60,000 hoursUp to 60,000 hours
HCB & SCBSL152D: 0mm
SL222D: 0mm
SL302D: 20mm
SL152D: 0mm
SL222D: 0mm
SL302D: 20mm
SL152D: -
SL222D: 0mm
SL302D: -
Delivered Lumens (specifications are given for 3000K colour - other colours may differ slightly)SL152D: 550 lumen
SL222D: 800 lumen
SL302D: 1000 lumen
SL152D: 500 lumen
SL222D: 730 lumen
SL302D: 910 lumen
SL152D: -
SL222D: 630 lumen
SL302D: -
Luminaire powerSL152D: 5.5W
SL222D: 7.9W
SL302D: 11.5W
SL152D: 5.5W
SL222D: 7.9W
SL302D: 11.5W
SL152D: -
SL222D: 8W
SL302D: -
EfficacySL152D: 80.9 Lm/W
SL222D: 87 Lm/W
SL302D: 75.8 Lm/W
SL152D: 73.5 Lm/W
SL222D: 79.3 Lm/W
SL302D: 68.9 Lm/W
SL152D: -
SL222D: 65.6 Lm/W
SL302D: -
Insulation coverable luminaireSL152D: IC-F & IC-4
SL222D: IC-F & IC-4
SL302D: NZ: CA135 AU: Do not cover
SL152D: IC-F & IC-4
SL222D: IC-F & IC-4
SL302D: NZ: CA135 AU: Do not cover
SL152D: -
SL222D: IC-F & IC-4
SL302D: -
Driver (inlcuded)SL152D - 150mA
SL222D - 220mA
SL302D - 300mA
(alternative options available
including Dali, Classic and Marine)
SL152D - 150mA
SL222D - 220mA
SL302D - 300mA
(alternative options available
including Dali, Classic and Marine)
SL222D - 220mA
(alternative options available
including Dali, Classic and Marine)
ReplacesSL152D: 35W halogen with equal or better result
SL222D: 50W halogen with equal or better result
SL302D: 70W halogen with equal or better result
SL152D: 35W halogen with equal or better result
SL222D: 50W halogen with equal or better result
SL302D: 70W halogen with equal or better result
SL222D: 50W halogen with equal or better result
LowGlareDD
