L05020 LED Driver

L05020 LED light 1-12VAC 350/700mA

This constant current LED driver includes the following features

  • High power factor
  • To use with LEDs without internal current regulation only
  • SELV-equivalent
  • Fourfold protection: thermal, short circuit, over voltage and open circuit

Define Your Product

Select the options below to define your product

Selected product: L05020 LED Driver

Product Code: L05020

Add to My Products List
TypeConstant current
Power output12W

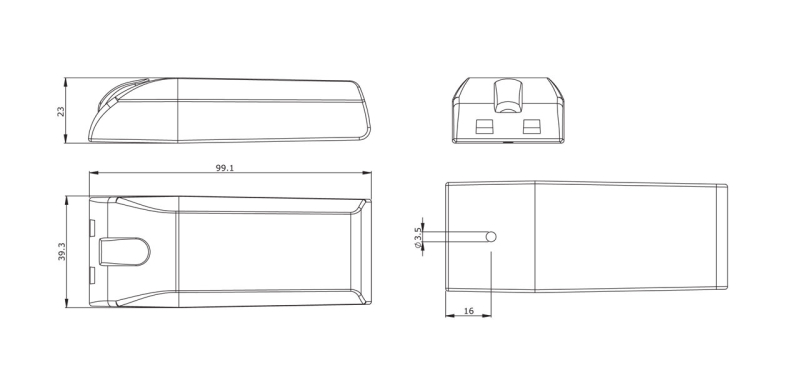

Size99 x 39 x 23 mm
Power factor (λ)0.9C
Input voltage110-240VAC 50/60Hz
Current outputOutput 1: 350mA (1-9 LED)
Output 2: 700mA (1-5 LED)
Voltage output3-32VDC
Ambient temperature (ta)-20 to +50°C
Max. temperature (tc)85°C
Expected lifetime50.000 hours
ApprovalsKEMA KEUR, ENEC 05, CE
Warranty5 years
Drivers (Various) Spec Sheet
