Mini 350mA / Mini 700mA IP65 LED Driver

Constant current LED Driver

  • Super compact design
  • Universal AC input
  • Primary and secondary sides come with leads
  • Open circuit, short circuit, over load and over heating protection
  • Simple installation
  • IP65 design



Define Your Product

Select the options below to define your product

Clear

Selected product: Mini 350mA / Mini 700mA IP65 LED Driver

Product Code: N/A

Add to My Products List
TypeConstant CurrentConstant Current
Input Voltage100-240V100-240V
Max Output4W4W
Output Current350mA750mA
Output Voltage3-12VDC3-6VDC
Power Factor (λ)0.4C0.4C
Efficiency Full Load78%78%
No-load Power<0.5W<0.5W
Ambient Temperature-20°C to +50°C-20°C to +50°C
Max. Casing Temperature80°C80°C
IsolationSELVSELV

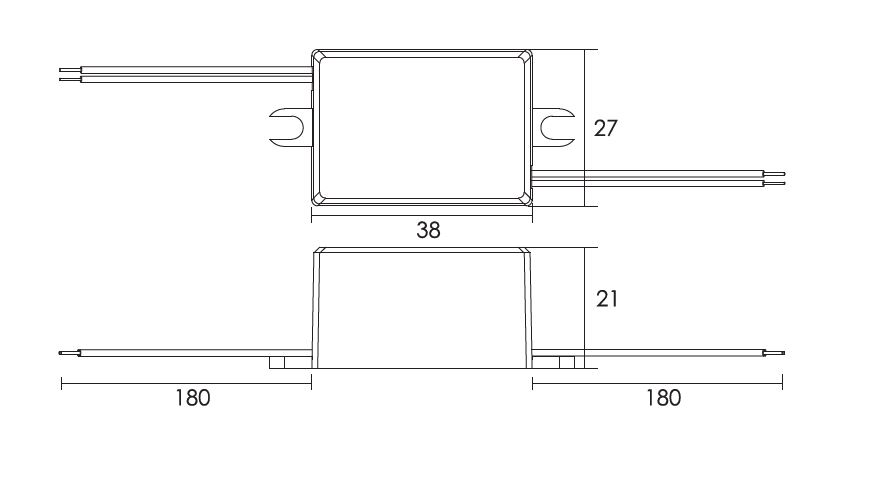

Dimensions LxWxH38mm x 27mm x 21mm38mm x 27mm x 21mm
Weight40g40g
Output Current

350mA, 700mA

SDOC SL1016 Mini 350mA
Drivers Spec Sheet Sep 2019
