Spot-LIGHTZ – Constant Current

This 4W LED spotlight is ideal for interior or exterior lighting

The adjustable head makes it easy to setup desired lighting

Define Your Light

Select the options below to define your light

Clear

Light Level and Beam Generator


Selected light: Spot-LIGHTZ – Constant Current

Product Code: N/A

Add to My Lights List
Add to My Lights List
  • Indoor or outdoor use – ideal for lighting larger plants, shrubs, trees, statues or other garden features
  • Wide or narrow beam – choose a 10 ̊ or 30 ̊  beam angle
  • Spike mounted (SL214) – a flexible head allows the spotlight to be positioned exactly where you need it and an extra thick anodise coating ensures longevity in your garden and or coastal environment
  • Surface mounted (SL204) – the 360 ̊  degree swivel base allows the spot light to be directed exactly where you need it
  • Typical driver to use with this product is the L05020 model – this is non-dimming and will power 1-2 spotlights (for greater numbers please contact Switch for advice)
TypeSpot Light - Constant Current
Beam angle10° (narrow beam) 30° (wide beam)
Colour temp2700K
CRI80
Trim coloursNatural Anodise or Black Anodise
Delivered lumens280 Lumen
IP ratingIP67
Dimensionsø 44mm x 84mm
DimmingYes (optional with L05021)
Power supplyConstant current 350mA are ordered separately:
1 light non-dimming Mini 350mA power supply
1-2 lights non-dimming = L05020
1-2 lights dimming = L05021
Luminaire Power4.1W
Constant current350mA
Forward voltage12V (do not connect direct to 12 VDC supply - use Constant Current power supply)

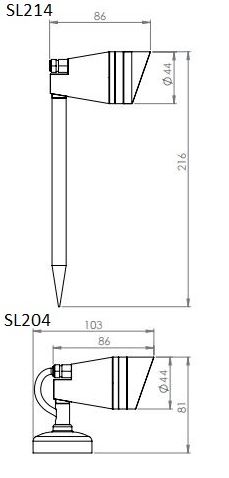

dimensions
