Spot-LIGHTZ – Constant Voltage

This constant voltage LED can be used for indoor and exterior spaces

Its durable construction makes it ideal for garden features and outdoor living spaces

Define Your Light

Select the options below to define your light

Clear

Light Level and Beam Generator


Selected light: Spot-LIGHTZ - Constant Voltage

Product Code: N/A

Add to My Lights List
Add to My Lights List
  • Indoor or outdoor use – ideal for lighting larger garden features
  • Wide or focused – 40 ̊ or 15 ̊  beam angle
  • Surface or spike mounted (spike – SL234 / surface – SL224)
  • Spot-LIGHTZ require a Constant Voltage power supply with 12VDC or 24VDC output – ordered separately
  • 5 year warranty on luminaire
TypeSpot Light - Constant Voltage
Beam angle15° (focused beam) or 40° (wide beam)
Colour temp2700K, 3000K or 4000K
CRI80
Trim coloursNatural Anodise, Black Anodise, 316 Stainless Steel, Copper
Delivered lumens415 Lumen
IP ratingIP67
DimensionsLuminaire = ø 42mm x 72mm
Surface Mount Base = ø 42mm
Spike Mount Base = ø 19.5mm x 250mm long
DimmingNo
Power supplyConstant voltage inbuilt driver (operates from 11-30VDC)
Requires 12VDC or 24VDC input (constant voltage)

1-3 lights in parallel = Q4-12V-20W (IP20 rated power supply)
1-6 lights in parallel = Q2-12V-36W (IP67 rated power supply)
Luminaire Power5.3W (440mA @ 12VDC or 220mA @ 24VDC)
Constant voltage12VDC or 24VDC
Expected life (L70)Up to 36,000 hours
Replaces25W halogen spot light
Warranty5 years (luminaire)

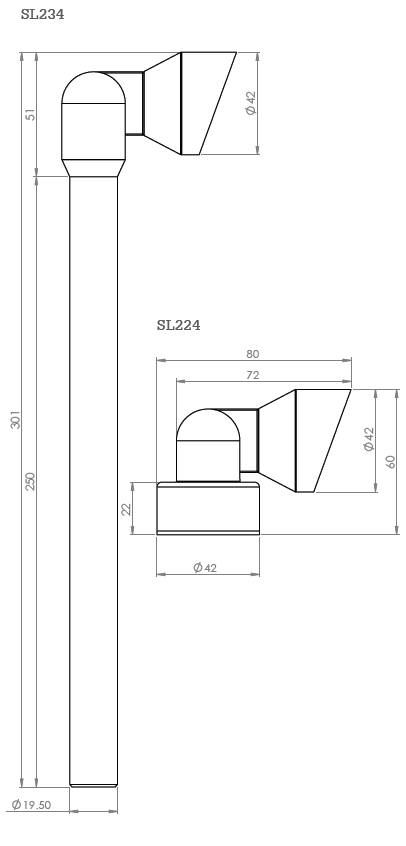

dimensions
